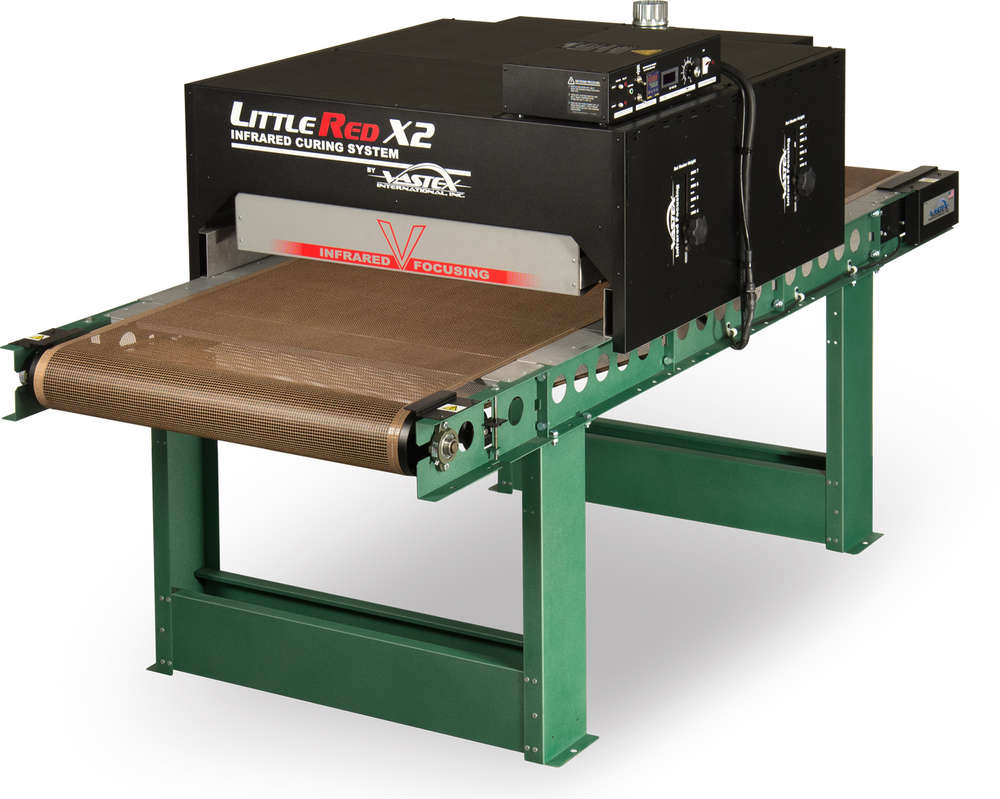

Vastex Econored LittelRED X2

Be the first to rate this product
6,050.00 €
Price plus VAT, plus delivery
Delivery weight: 200 kg


Available shipping methods: Geodis, NetExpress Europe, Collection at our shop, Livraison par transporteur DACHSER

LittleRed-logox2         logo-vastex



All Little Red series dryers have a tilting heater design. Works great for curing hats.

The all-new series of Little Red Conveyor Dryers from Vastex offers expandability, repeatable results and fast payback never before available to mid/high-capacity textile printers.

Following are details on Little Red X2 models. For lower capacities go to Little Red X1 models.

The Little Red X2-30 model with 30 in. (76 cm) wide x 84 in. (213 cm) long conveyor belt is offered with two 24 in. (61 cm) wide 240V/2,600 watt heaters to cure up
to 260 plastisol-printed images or 90 discharge or water-based printed images per hour.

The Little Red X2-54 model with 54 in. (137 cm) wide x 84 in. (213 cm) long conveyor is equipped with two 48 in. (122 cm) wide 240V/5,200 watt infrared heaters to cure up to 520 plastisol-printed images or dry 180 discharge or water-based printed images per hour.

Capacity of both models can be expanded as needs grow by adding modular heating chamber(s) and longer conveyor belts.

POWERFUL

LR X2-30: (2) 240V/2,600 watt heaters (total 5,200 watts)
LR X2-54: (2) 240V/5,200 watt heaters (total 10,400 watts)

EFFICIENT
Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing

DEPENDABLE
Industry-leading 15-year heater warranty

COOL
Powered exhaust system cools the outer cabinet while evacuating moisture and fumes

ACCURATE
Digital PID Temperature controller is accurate to +/-1°F

CONSISTENT
Low friction belt aligner and DC belt speed control with digital display

HEAVY DUTY
"X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt

ADJUSTABLE
2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater

EXPANDABLE
Add 18 in. (46 cm) and 36 in. (92 cm) chambers and/or 18in. (46 cm) belt extensions

OPTIONS
  • Additional heating chambers and conveyor belt extensions
  • Locking casters for mobility
  • Heavy duty belt motor (recommend for longer conveyor belts), standard on X2-54 models

Additional product information

Electrical power 220 Volts
